Revolutionizing Slip Casting: The DIY 3D Printed Pump For Everyone
Introduction
Are you tired of the messy and time-consuming process of filling multiple molds for slip casting? Look no further! We've developed an innovative, cost-effective solution that's set to transform the ceramics and casting industry. Our 3D printed pump for casting slip is not only efficient but also accessible to hobbyists and professionals alike.
The Birth of an Idea
While working on a large casting project, it became evident that a faster, cleaner method for filling multiple molds was essential. Commercial casting pumps, with their hefty price tags around $1,500, were out of reach for many. This gap in the market sparked the idea for an affordable, 3D printable alternative.
Design and Functionality

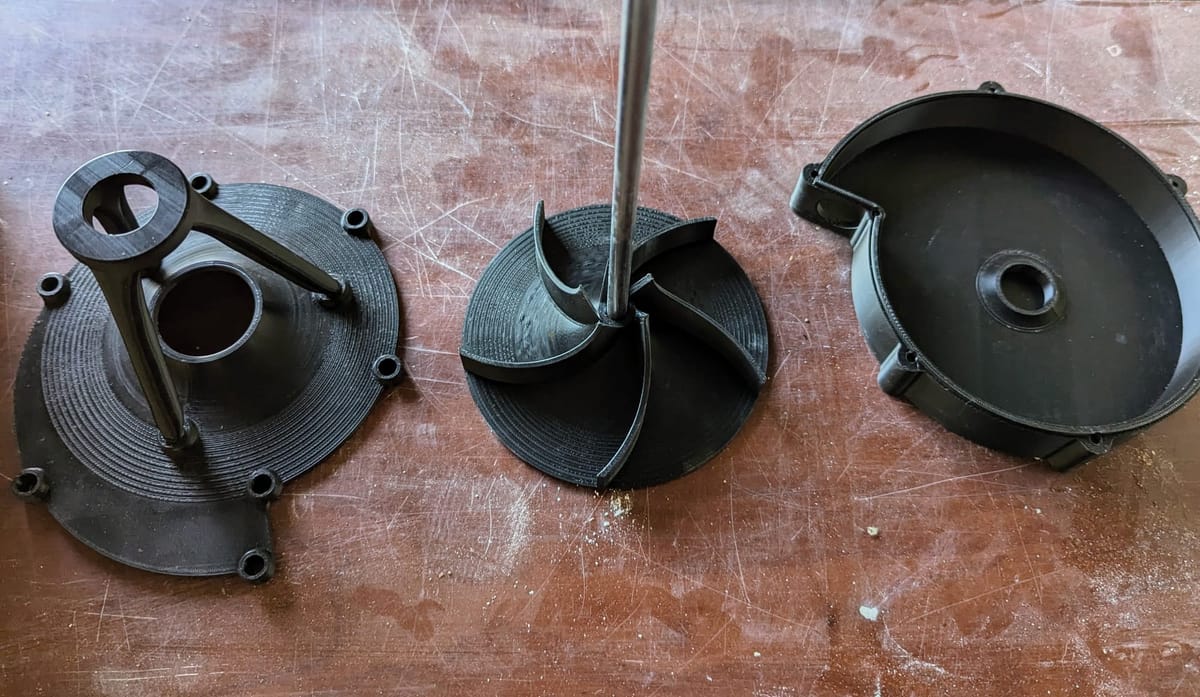

Our pump design is elegantly simple, consisting of just a few key components:
- An impeller
- A pump casing with volute
- Two bearings
- An 8mm rod
What sets this pump apart is its portability and ease of use. Unlike traditional slip casting pumps with expensive, bulky motors, our design aims to be compact and user-friendly.
Materials and Manufacturing
We've chosen PETG for the 3D printed parts, offering durability and ease of printing. The metal components are made from stainless steel to prevent rust, ensuring longevity even when working with wet materials.
Innovative Safety Features
One of the pump's standout features is its magnetic coupler. This ingenious addition prevents over-torquing and accidental reverse operation, which can be common when using a cordless drill as the power source. The coupler is designed to slip at a set threshold, protecting the impeller and other components from damage caused by overloading.
Design Process and Tools

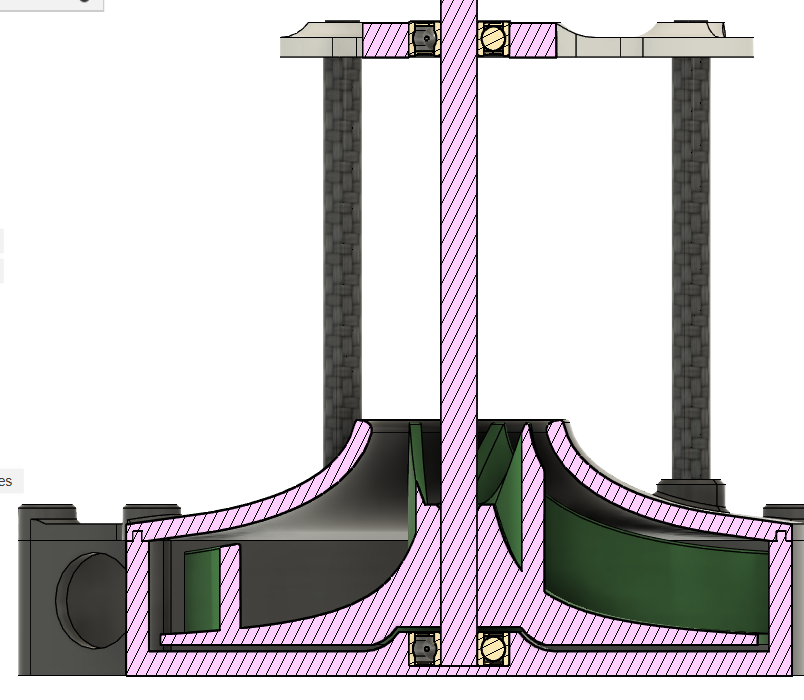

The entire design was created using Autodesk Fusion 360, with some experimental work in Generative Design for optimizing the top bearing and shaft mount. This cutting-edge approach ensures maximum efficiency and durability.
Accessibility and Open-Source Vision
Our goal is to make this pump accessible to everyone in the ceramics and casting community. By making the design open-source, we aim to encourage collaboration and continuous improvement. This project is still a work in progress, and we welcome contributions from the community to refine and enhance the design further.
Performance and Future Plans
While testing is yet to be conducted, initial results are promising. We're excited about the potential impact this pump could have on the industry, making slip casting more accessible and efficient for hobbyists and small-scale producers.
Conclusion
The 3D printed pump for casting slip represents a significant step forward in democratizing ceramic production tools. By combining affordability, accessibility, and innovative design, we're paving the way for more creative freedom in the world of ceramics and casting.
Stay tuned for updates on this exciting project, and get ready to step up your slip casting process!
